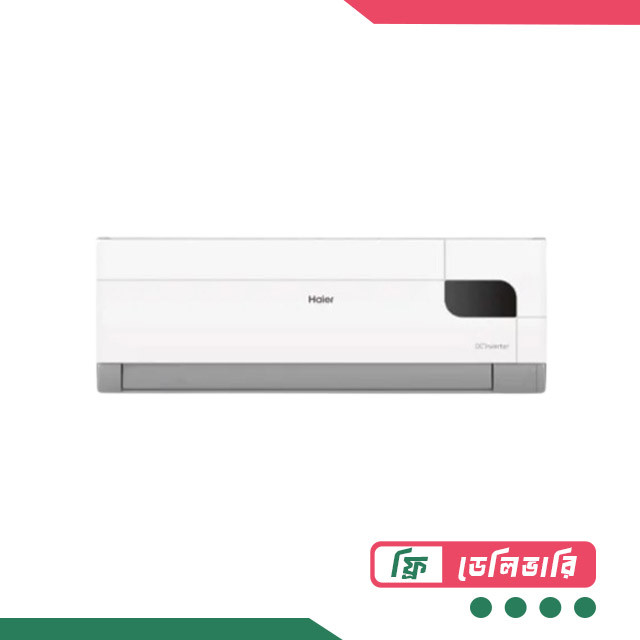

Haier 1 Ton EnergyCool Inverter AC (HSU-12EnergyCool)

Capacity and Parameters

• Type: Inverter
• TR (Ton Range): 1 Ton
• (Btu/h): 12000
• Rated Cooling Capacity (W): 3480 (500~3850)
• EER (W/W): 2.93
• Power Supply (Volt/Phase/Hz): 1/230/50HZ
• Rated Power Input (W): 1140 (150~1550)
• Rated Current (A): 5 (0.7~6.9)
• Max. Current (A): 6.9
• Indoor air flow (Hi/Mi/Lo) m3/h: 650
• Compressor Type: Rotary
• Refrigerant Type: R32
• Refrigerant Standard (Kg): 0.6
• Refrigerant Pipe Dia (mm) Liquid Side/Gas Side: 6/9
• Evaporator/Condenser: 100% 7mm Grooved Copper
• Heat Exchangers: Golden Fin
• Indoor Noise Level (Hi/Mi/Lo) [dB(A)]: 41/38/35
• Outdoor Noise Level [dB(A)]: 52

Air Flow Direction

• Up & Down: Auto
• Left & Right: Auto

Net Weight

• Indoor (Kg): 10.0
• Outdoor (Kg): 23.0

Net Dimension (WxDxH)

• Indoor (W*D*H) mm: 805*200*292
• Outdoor (W*D*H) mm: 700*245*544

Package Dimension (WxDxH)

• Indoor (W*D*H) mm: 876*272*365
• Outdoor (W*D*H) mm: 819*320*592

User Functions

• Wifi: No
• UVC Technology: No
• Energy Saving: Yes (Up to 65%)
• Dry Mode: Yes
• Self Clean: Selfclean
• ECO Mode: Yes
• Turbo Function: Yes
• Auto Restart Function: Yes
• Sleep Mode: Yes
• Low Noise: Yes
• Timer: Yes
• Quick & Easy Installation: Yes
• Child Lock: Yes
